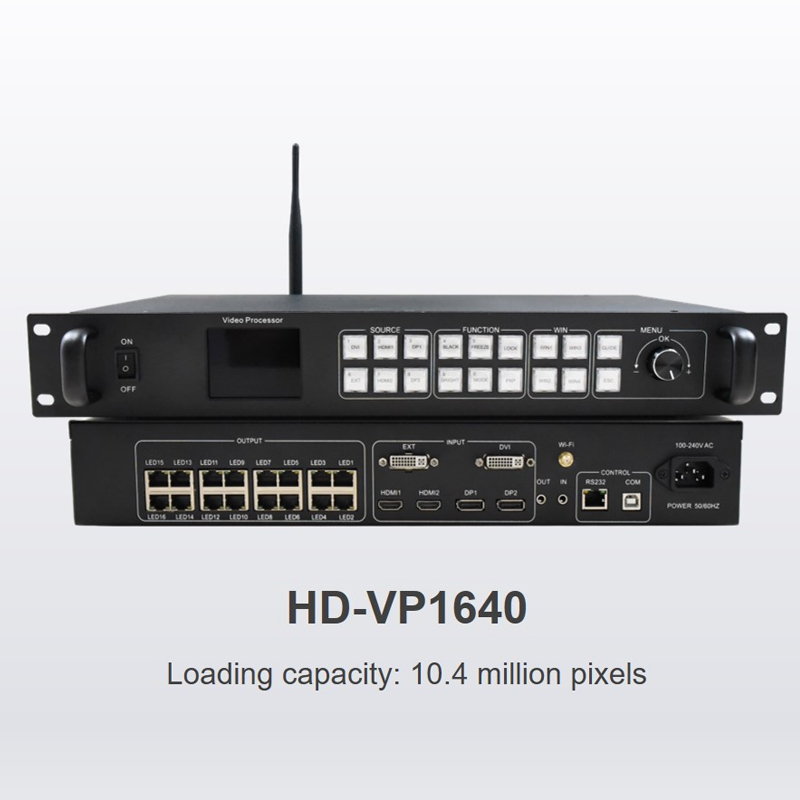

Huidu HD-VP1640 All-in-one LED Video Processor

Huidu HD-VP1640 is a four windows LED display controller, it have 16 lines Gigabit Ethernet ouput, the loading capacity is 10.4 million pixles, support 6 signal input and can swithing arbitrary, comes with Wi-Fi funciton, support mobile APP wireless control.

Description

Huidu HD-VP1640 is a four windows LED display controller, it have 16 lines Gigabit Ethernet ouput, the loading capacity is 10.4 million pixles, support 6 signal input and can swithing arbitrary, comes with Wi-Fi funciton, support mobile APP wireless control.

Features:

1)Integrated video processor、sending card function, 16 gigabit network port output, total pixels 10.4 million points;

2)6-channel high-definition digital video input, DP up to 4K@60Hz input;

3)Multiple audio input and output;

4)Support four live windows display , POP;

5)Fast switching of any channel;

6) Parameter setting and saving function, scene preset saving and recalling;

7) The “Navigation Settings” function is convenient for quick settings;

8) The “connection setting” function does not require computer control, and directly sets the connection parameters of each cabinet through the panel buttons;

9) The device can be debugged and controlled through the panel buttons, USB, Wi-Fi (mobile APP, developing)

Parameters:

DVI Input 1

Interface form: DVI-I socket

Signal standard: DVI1.0

Resolution: VESA standard, PC to 1920×1200, HD to 1080p

HDMI Input 2

Interface form: HDMI-A

Signal standard: HDMI1.4 backward compatible

Resolution: VESA standard,≤3840×2160@30Hz

DP Input 2

Interface form :DP

Signal standard:DP1.2向下兼容

Resolution: VESA standard,≤3840×2160@60Hz

EXT Input 1

DVI or SDI,Default standard DVI

AUDIO IN Input x1,3.5mm audio port
AUDIO OUT Output x1,3.5mm audio port
Network port Output 16-way network port output interface,connected to the acceptance card,total pixels1040W,Widest 16000,Highest 3840

Each network port carries 65W pixels, and the widest single network port is 2048 pixels and the highest is 2048 pixels.

RS232 The integrated control host (i.e. central control) can be connected through RS232
Square USB port (Type B) Connect to the PC, debug the parameters of the sending card and receiving card, and program upgrades through HDSet software.
Wi-Fi Support mobile phone APP for sending card, receiving card parameter debugging, program upgrade, etc.— developing
Power interface 100-240V~50/60Hz
Whole machine power <=75W
Weight <=3.6kg
Sizemm Case size:(Length)482mm*(width)302.8mm*(hight)65.5mm
Machine case 1.5U standard industrial chassis

Video:
