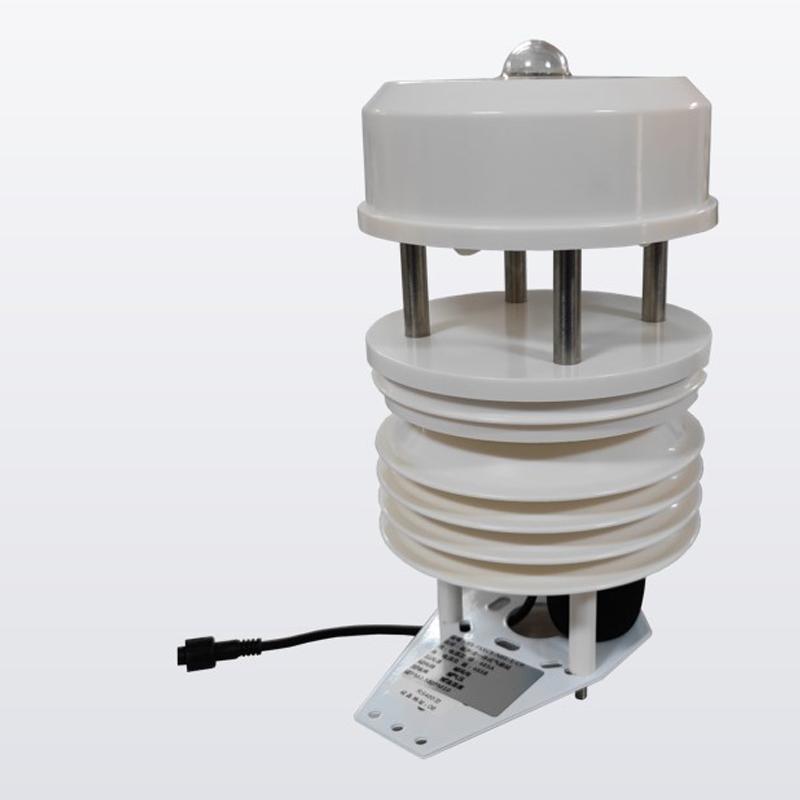

Huidu HD-S90 Environmental Monitoring Sensor

This all-in-one weather station can be widely used in environmental detection, integrating wind speed, wind direction, temperature and humidity, noise collection, PM2.5 and PM10, atmospheric pressure, and light.
Categories: , Tags: ,

Description

Overview:
This all-in-one weather station can be widely used in environmental detection, integrating wind speed, wind direction, temperature and humidity, noise collection, PM2.5 and PM10, atmospheric pressure, and light.

Features:

This product is small in size and light in weight. It is made of high-quality anti-ultraviolet materials and has a long service life. It uses a high-sensitivity probe with stable signal and high accuracy. The key components adopt imported components, which are stable and reliable, and have the characteristics of wide measurement range, good linearity, good waterproof performance, convenient use, easy installation, and long transmission distance.

  • It adopts an integrated design with multiple collection devices and is easy to install.
  • Wind speed and direction are measured by ultrasonic principle, no start-up wind speed limit, zero wind speed work, no angle limit, 360° omni-directional, wind speed and wind direction data can be obtained at the same time.
  • Noise collection, accurate measurement, the range is as high as 30dB~120dB.PM2.5 and PM10
  • Simultaneous acquisition, range: 0-1000ug/m3, resolution 1ug/m3, unique dual-frequency data acquisition and automatic calibration technology, consistency can reach ±10%.
  • Measuring the environmental temperature and humidity, the measuring unit is imported from Switzerland, and the measurement is accurate.
  • Wide range 0-120Kpa air pressure range, applicable to various altitudes.
  • Use dedicated 485 circuit, stable communication.
  • Equipment with built-in electronic compass, no direction requirements during installation, horizontal installation.

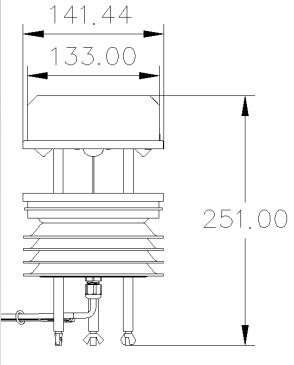

 Equipment Size:

26353df94ad3f204d01f31b1952c3368

 Installation Method:

The installation of equipment without electronic compass is shown in the figure below, and the equipment with built-in electronic compass only needs to be installed horizontally.

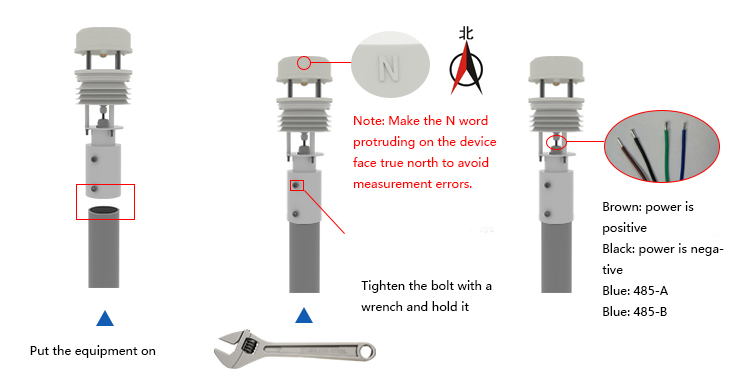

Hugging seat installation:

8a49328586cc20b4fad0a07bc684415b

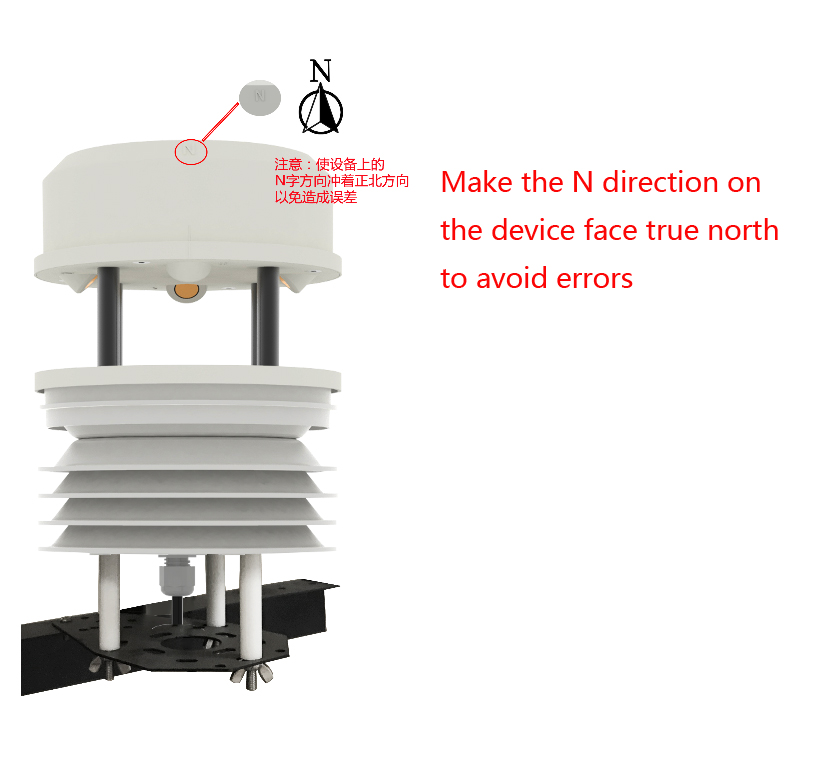

Beam installation:
5749ccadec756ebd9ace2d63db1da9e4

 Interface Description:

DC power supply 10-30V power supply. When wiring the 485 signal line, pay attention to the two wires A/B not to be reversed, and the addresses of multiple devices on the bus cannot be conflicted.



Line color Illustrate
Power supply Brown Power is positive(10-30V DC)
Black Power is negative
Communication Green 485-A
Blue 485-B

Main Technical Index:



DC   power supply (default) 10-30VDC
Maximum   power consumption RS485   output 1.2W
Precision Wind   speed ±(0.2m/s±0.02*v)(v is the true wind speed)
Wind   direction ±3°
Humidity ±3%RH(60%RH,25℃)
Temperature ±0.5℃(25℃)
Atmospheric   pressure ±0.15Kpa@25℃ 75Kpa
Noise ±3db
PM10   PM2.5 ±10%(25℃)
Light   intensity ±7%(25℃)
Range Wind   speed 0~60m/s
Wind   direction 0~359°
Humidity 0%RH~99%RH
Temperature -40℃~+80℃
Atmospheric   pressure 0-120Kpa
Noise 30dB~120dB
PM10   PM2.5 0-1000ug/m3
Light   intensity 0~20万Lux
Long-term   stability Temperature ≤0.1℃/y
Humidity ≤1%/y
Atmospheric   pressure -0.1Kpa/y
Noise ≤3db/y
PM10   PM2.5 ≤1%/y
Light   intensity ≤5%/y
Response   time Wind   speed 1S
Wind   direction 1S
Temp   & Hum ≤1s
Atmospheric   pressure ≤1s
Noise ≤1s
PM10   PM2.5 ≤90S
 Light intensity ≤0.1s
Output   signal RS485   output RS485   (standard Modbus communication protocol)
