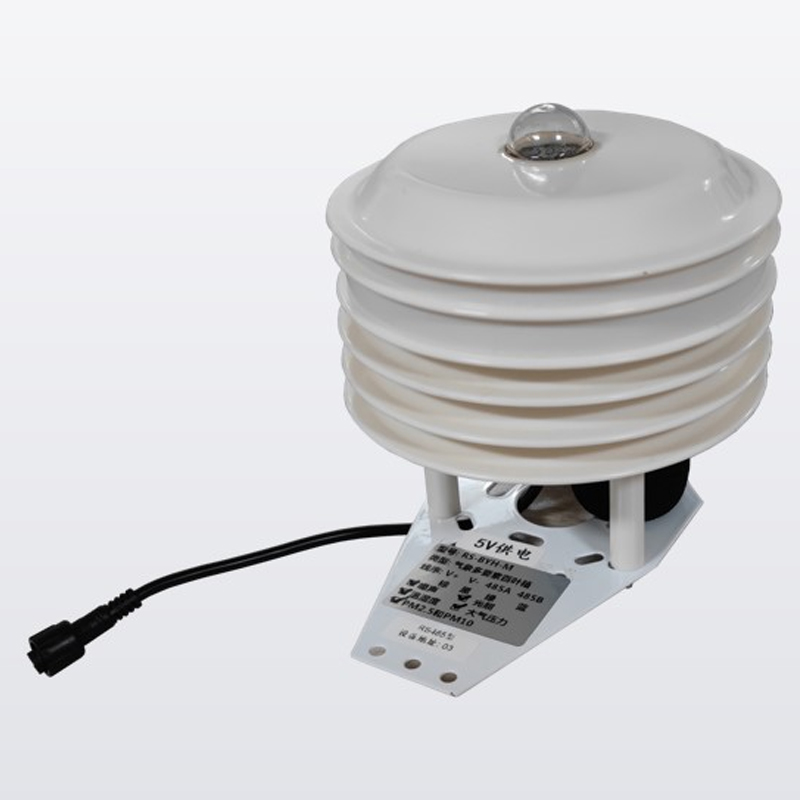

Huidu HD-S70 Environmental Monitoring Sensor

This one-piece shutter can be widely used in environmental detection, integrating noise collection, PM2.5 and PM10, temperature and humidity, atmospheric pressure, and light.
Categories: , Tags: ,

Description

Overview:
This one-piece shutter can be widely used in environmental detection, integrating noise collection, PM2.5 and PM10, temperature and humidity, atmospheric pressure, and light.

Features:

This product is small in size, light in weight, made of high-quality anti-ultraviolet materials, long service life, high-sensitivity probe, stable signal, high precision. The key components adopt imported components, which are stable and reliable, and have the characteristics of wide measurement range, good linearity, good waterproof performance, convenient use, easy installation, and long transmission distance.

  • Noise collection, accurate measurement, the range is as high as 30dB~120dB.
  • 5 and PM10 are collected at the same time, range: 0-1000ug/m3, resolution 1ug/m3, unique dual-frequency data collection and automatic calibration technology, consistency can reach ±10%.
  •  Measure the environmental temperature and humidity, the measuring unit is imported from Switzerland, the measurement is accurate, and the range is -40~120 degrees.
  • Wide range 0-120Kpa air pressure range, applicable to various altitudes.
  • The light collection module adopts a high-sensitivity photosensitive probe, and the light intensity range is 0~200,000 Lux.

Use dedicated 485 circuit, stable communication, 10~30V wide voltage range power supply.

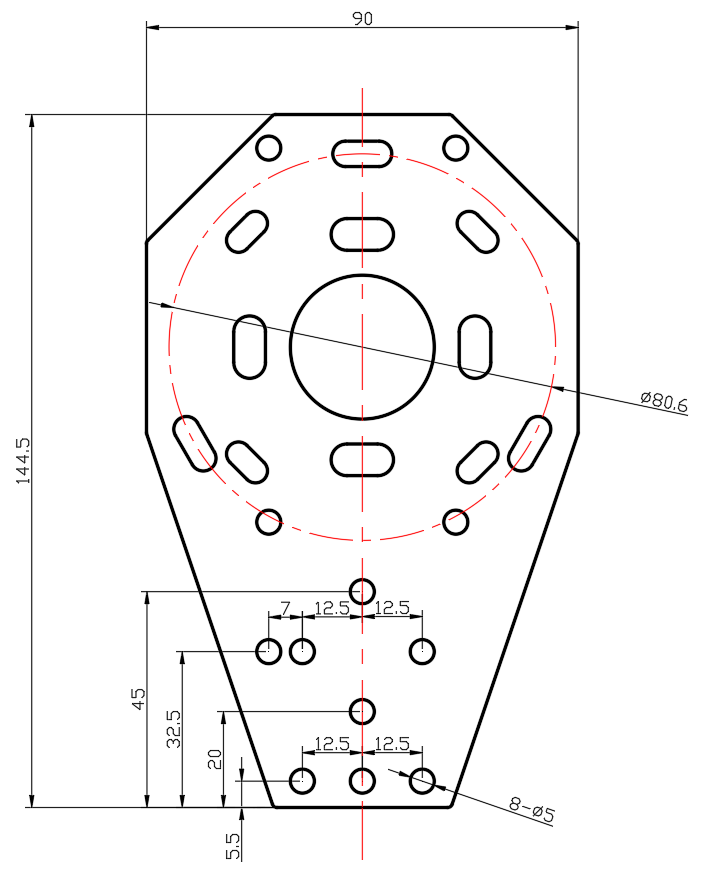

 Equipment Size:

cc2f8fbbcd0bcf4204e306d7c01bbc1c

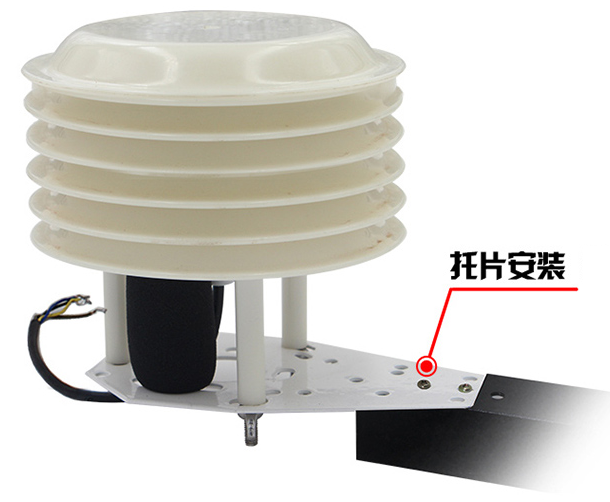

 Installation Method:

828aa437a8dd90db1c07cde87c4080f0

 Interface Description:

Wide voltage power input range 10~30V. When wiring the 485 signal line, pay attention to the two lines A and B not to be reversed, and the addresses of multiple devices on the total wire must not conflict.

Line color Illustrate
Power supply Brown Power is positive(10-30V DC)
Black Power is negative
Communication Yellow 485-A
Blue 485-B

Main Technical Index:

DC power supply(default) 10-30VDC
Maximum power consumption RS485 output 0.8W




Precision

Temperature ±3%RH(60%RH,25℃)
Humidity ±0.5℃(25℃)
Light intensity ±7%(25℃)
Atmospheric pressure ±0.15Kpa@25℃ 75Kpa
Noise ±3db
PM10 PM2.5 ±10%(25℃)




Range

Humidity 0%RH~99%RH
Temperature -40℃~+120℃
Light intensity 0~20万Lux
Atmospheric pressure 0-120Kpa
Noise 30dB~120dB
PM10 PM2.5 0-1000ug/m3
Long-term stability Temperature ≤0.1℃/y
Humidity ≤1%/y
Light intensity ≤5%/y
Atmospheric pressure -0.1Kpa/y
Noise ≤3db/y
PM10 PM2.5 ≤1%/y




Response time

Humidity&   Temperature ≤1s
Light   intensity ≤0.1s
Atmospheric   pressure ≤1s
   Noise ≤1s
PM10   PM2.5 ≤90S
Output signal RS485 output RS485(Standard Modbus communication   protocol)
