Huidu HD-S208 Environmental Monitoring Sensor Box

Huidu HD-S208 is a new and upgraded multi-functional sensor supporting all asynchronous full color control systems, which includes eight functions of temperature, humidity, brightness, PM value, wind speed, wind direction, noise and brightness.
Categories: , Tags: ,

Description

Overview:

Huidu HD-S208 is a new and upgraded multi-functional sensor supporting all asynchronous full color control systems, which includes eight functions of temperature, humidity, brightness, PM value, wind speed, wind direction, noise and brightness. The whole set of equipment includes wind speed transmitter, wind direction transmitter, multi-functional shutter box, remote control receiver and S208 main control box.



Description:

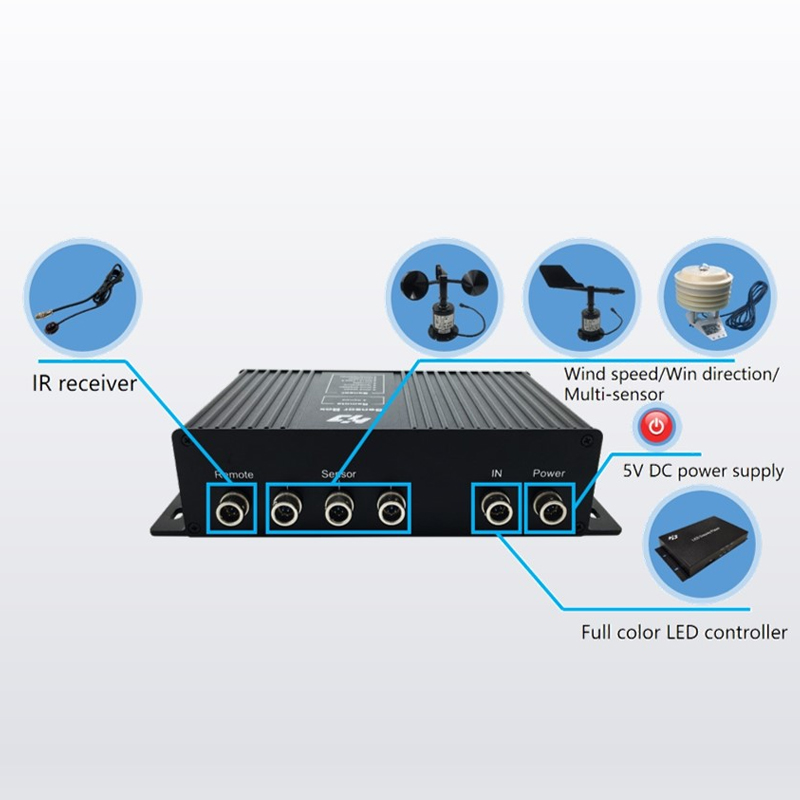

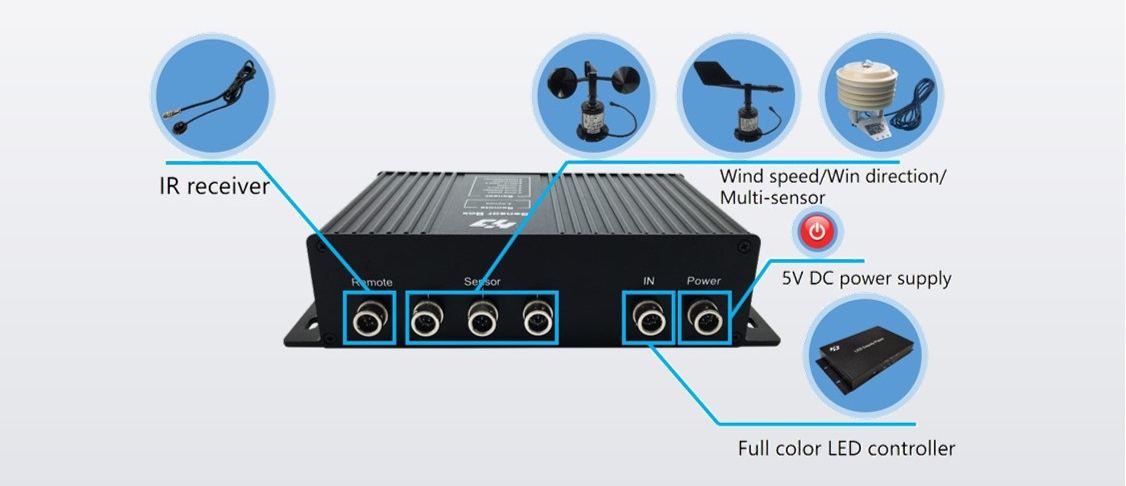

1、 Connection Demo

The whole set of equipment includes wind speed transmitter, wind direction transmitter, multi-function shutter box, remote control receiver and S208 main control box.

f516da947e629db8fa57ee2a07367026

2、 HD-S208 Package description

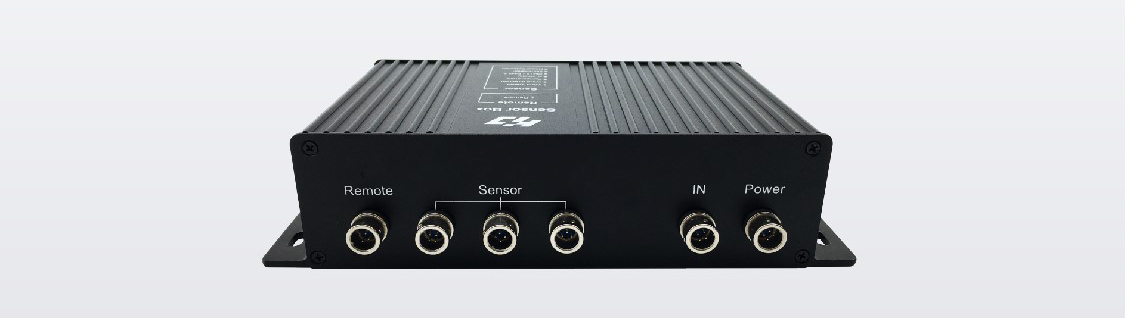

1.  HD-S208 Main Control Box

Responsible for collecting the data transmitted by the sensor and connecting with the control card is the core of the whole set of equipment.

ae8aca5d3c2ef5961d6f44f17a0a98ab

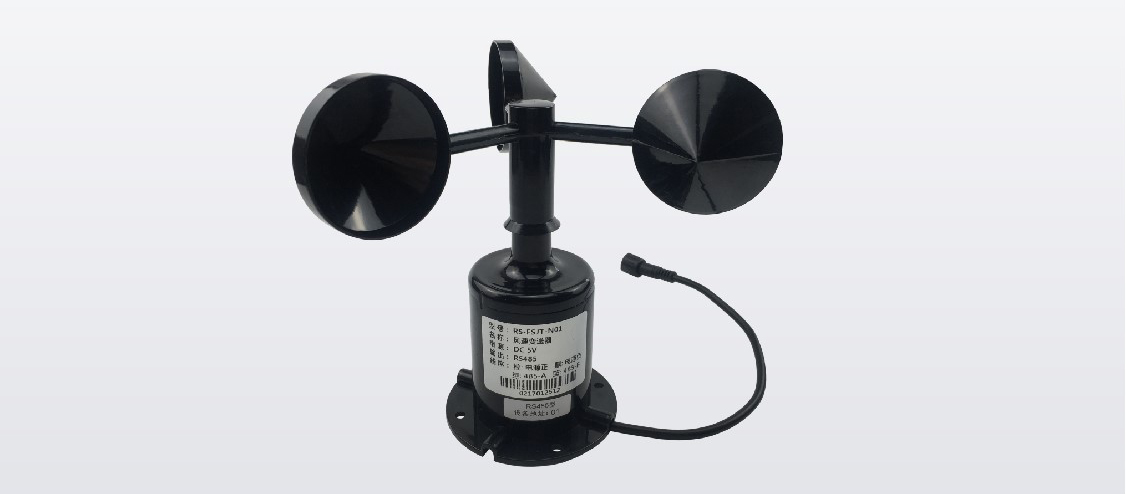

2.  Wind Speed Sensor

Real-time sensing of the speed of ambient air circulation, passing data to the main control box.

27271dd95ebb8a450cc37c768463f534

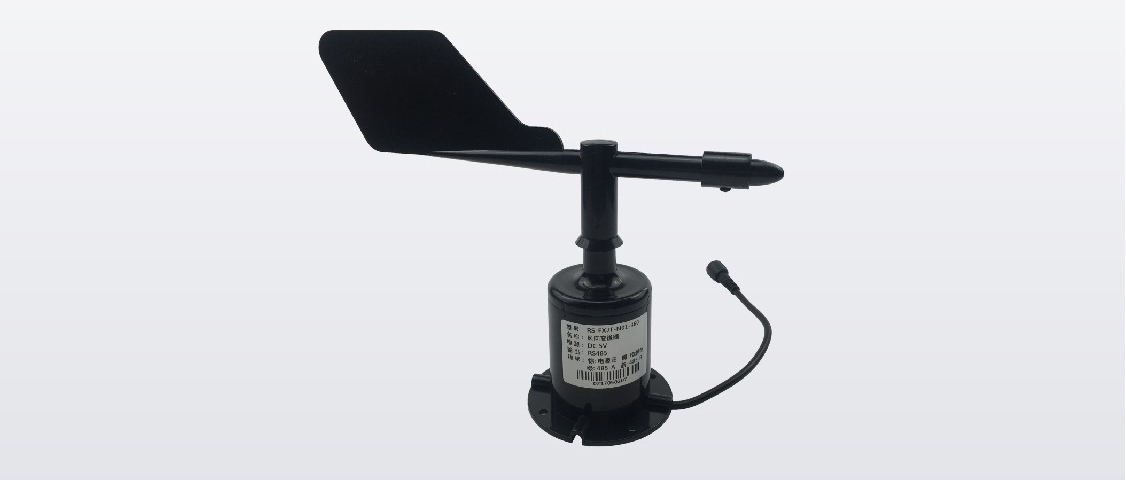

3.  Wind Direction Sensor

Real-time sensing of the direction of ambient air circulation, passing data to the main control box.

7c68a072caf450b7fc7917f21512ad30

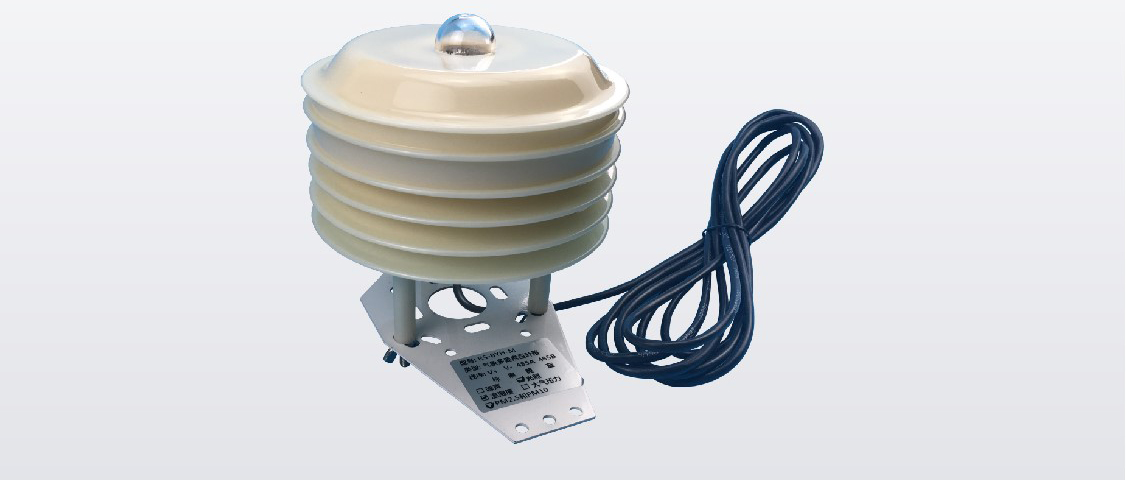

4.  Multi-Sensor

Ability to monitor temperature, humidity, brightness, noise, and PM2.5, PM10 values and pass this data to the main control box.

b5d88cfcb430d1e04d442889704e5024

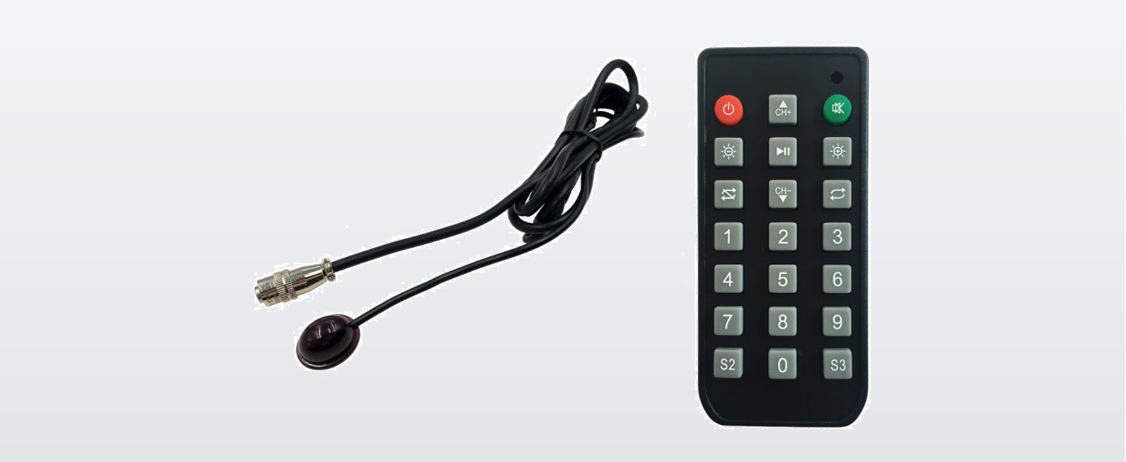

5.  IR recerver

Receive infrared remote control signal to adjust the brightness of the display and switch program content.

1f508b795984b6206b7d2ec31b442959
