Description

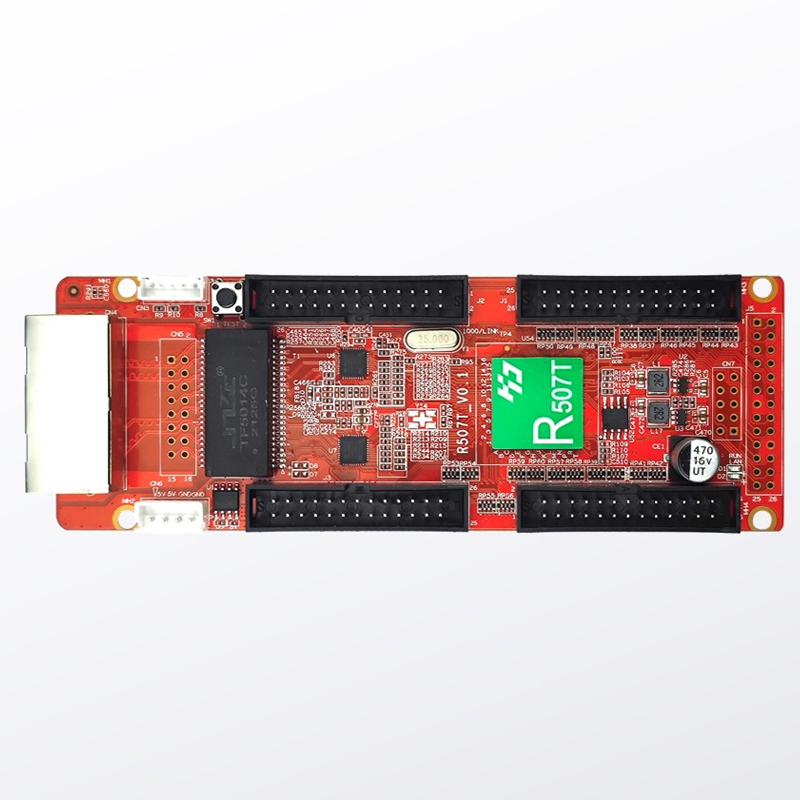

Huidu HD-R507T is a mini receiving card for fine pixel pitch LED screen, it has 4 lines 26 pin HUB ports, support 24 group RGB parallel data. R507T work with asynchronous controller, synchronous controller and all-in-one video processor.
Features:
- Support regular chips and PWM chips
- Support static module, any scan mode within 2~64 scan
- Support data group exchange and data group offset setting
- Support multi-card cascade, arbitrary order
- The maximum loading range: 128*1024
Parameters
Functions | Parameters |
With sending card | Dual-mode sending box,Asynchronous sending card, Synchronous sending card, Video processor of VP series. |
Module type | Supports transparent screen modules for all normal chips and mainstream PWM chips. |
Scan Mode | Support any scanning method from static to 1/64, support extraction and empty point setting. |
Communication | Gigabit Ethernet port |
Control Range | Maximum loading capacity: 131,072 pixels (128*1024)
Recommend loading width≤128 pixels |
Multiple cards cascaded | Receiving cards can be arbitrarily Sort, synchronized in nanoseconds |
Gray Scale | Support 256~65536 (adjustable) |
Smart setting | A few simple steps to complete the smart setting, and the display module can be matched with any wiring mode through the screen body routing setting. |
Communication distance | 80 meters by CAT5 or CAT6 RJ45 Cable |
Port | 2 ways of 5V DC power supply, Gigabit Ethernet*2, 26PIN HUB*4 |
Input voltage | 4.2V-5.5V |
Power | 5W |
