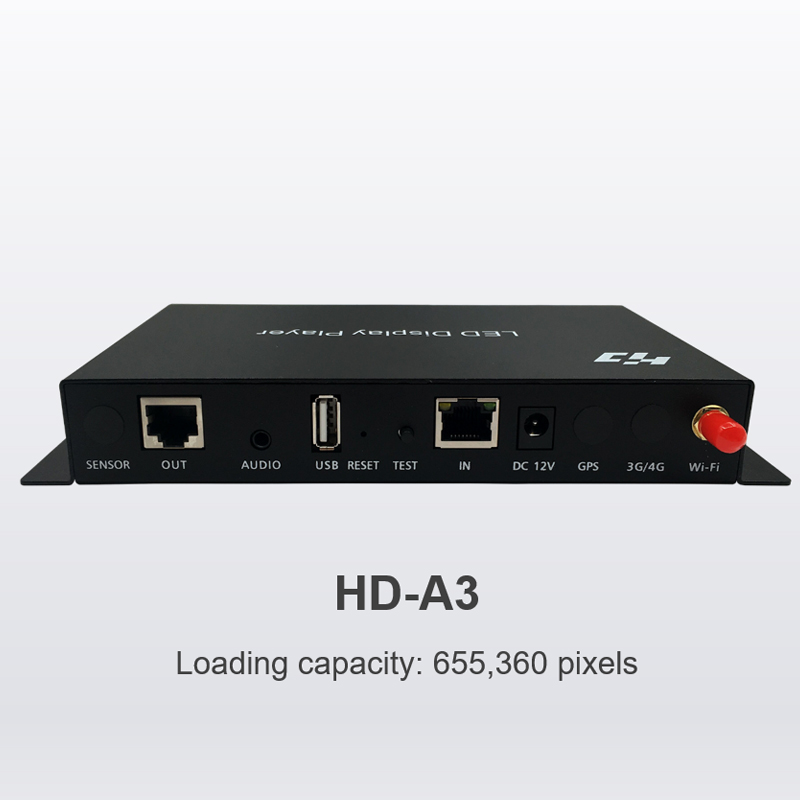

Huidu HD-A3 Asynchronous Sending Box

Huidu HD-A3 is asynchronous sending box, come with Wi-Fi, support mobile APP wireless management, equipped with 8GB memory, support expending memory by U-disk, support optional 4G module, remote cluster control, suitable used for all asynchronous advertising LED display.

Description

Huidu HD-A3 is asynchronous sending box, come with Wi-Fi, support mobile APP wireless management, equipped with 8GB memory, support expending memory by U-disk, support optional 4G module, remote cluster control, suitable used for all asynchronous advertising LED display.

Huidu HD-A3 Asynchronous Sending Box Features:

1.  The maximum loading capacity: 655,360 pixels

2.  8GB memory, support expending memory by U-disk.

3.  No need set IP address, it could be identified by controller ID automatically.

4.  Equipped with Wi-Fi, Mobile APP management.

5.  Equipped with 3.5mm standard audio interface output.

6.  Support optional 4G connection, Internet remote control.

Huidu HD-A3 Asynchronous Sending Box Parameters:

Function Parameters
Control Range Resolution: 655,360 million pixels (1280*512),   Widest 4096 pixel, highest 2048 pixel
Gray Scale 256-65536 (adjustable)
Play Functions Video, Pictures, Gif, Text,   Office, Clocks, Timing, etc.

Support connected IR Remote,   Temperature, Humidity, Brightness, PM Value sensor, etc.

Video Format HD video hard decoding, 60Hz frame rate output.

AVI, WMV, RMVB, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP,   TS, WEBM, etc.

Image Format Support BMP, GIF, JPG, JPEG, PNG, PBM, PGM, PPM, XPM, XBM, etc.
Text Text editing, Image, Word,   Txt, Rtf, Html, etc.
Document DOC, DOCX, XLSX, XLS, PPT, PPTX, etc.

Microsoft Office 2007 Document format

Time Classic Analog Clock,   digital clock and various of clock with image background
Audio output Double track stereo audio   output
Memory 8GB Flash Memory, support   expanding memory by U-disk
Communication 100/1000 Mbps RJ45   Ethernet, Wi-Fi, 3G/4G, LAN, USB
Working Temp -40℃-80℃
Port IN:12V Power Adapter*1, 1Gbps   RJ45*1, USB 2.0*1, Test Button*1,   GPS, 3G/4G(Optional), Sensor port*1,

OUT:1Gbps RJ45*1,AUDIO*1

Power 18W   (12V DC power supply)

Huidu HD-A3 Asynchronous Sending Box Method:

  1. Internet unified management: The play box can be connected to the Internet through 3G/4G (optional), network cable connection, or Wi-Fi Bridge.

0e00218d5e6c8a55562125cdfdff51c2

  1. Asynchronous one-to-one control: Update programs by network cable connections, Wi-Fi connections or USB flash drives. LAN (cluster) control can access the LAN network through by network cable connection or Wi-Fi Bridge.

1461f95095388096f3d70655e10d0874

Huidu HD-A3 Asynchronous Sending Box Video:
