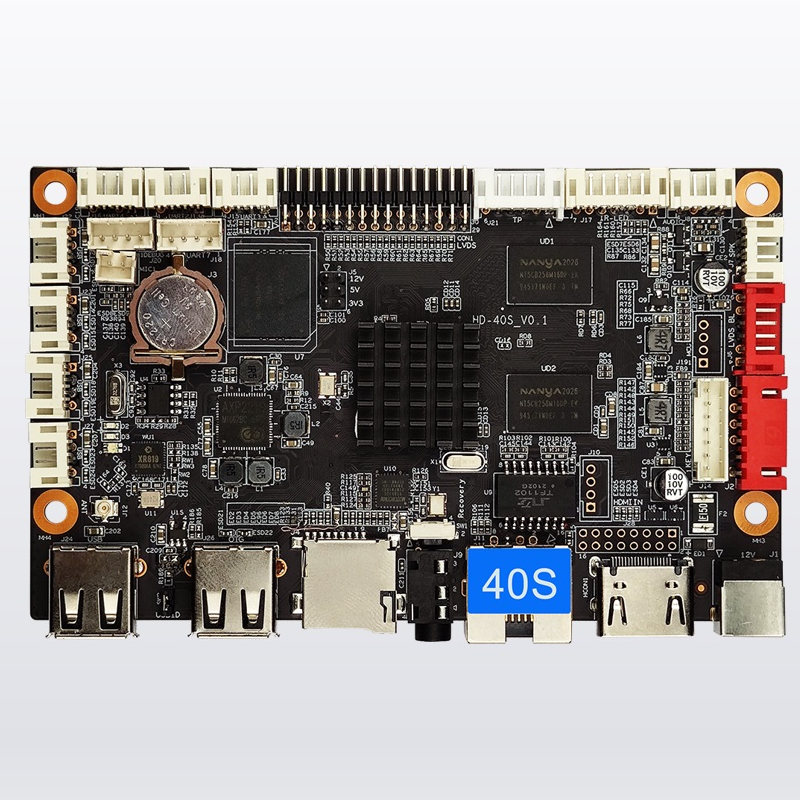

Huidu HD-40S LCD Digital Signage Motherboard

Huidu HD-40S is a LCD digital signage motherboard, come with Wi-Fi, support mobile APP management, it can use LAN cable/TF card update programs, standard 1GB DDR and 8GB memory, rech extension interface, suitable for various occasions.

Description

Overview:

Huidu HD-40S is a LCD digital signage motherboard, come with Wi-Fi, support mobile APP management, it can use LAN cable/TF card update programs, standard 1GB DDR and 8GB memory, rech extension interface, suitable for various occasions.

 Features:

      ● Minimalist design, reserved common interfaces, Mini size, can be used in ultra-thin application scenarios;

  ● High stability. The A40i Android integrated board adds its own unique technology to the hardware and software to ensure the stability of the product, which can make the final product reach 7*24 hours unattended.

 ● High integration. The A40i Android all-in-one board integrates Ethernet, Wi-Fi, Power amplifier, TF expansion card, USB expansion port, IR remote control function, HDMI, LVDS, Backlight control, microphone and other functions, which greatly simplifies the design of the whole machine.

  ● High scalability. 6*USB (4 *Pins, 2 *standard), 5 *serial ports (4 *UART, 1 *DEBUG), and 5 *IO expansion ports available expand more peripheral devices.

  ● High definition. It supports various LVDS/HDMI interface LCD displays, and supports various sizes and resolutions of cropped screens.

  ● Perfectly support multiple mainstream touch screen functions such as multi-point infrared touch, multi-point capacitive touch, multi-point Nano film touch, multi-point acoustic wave touch, multi-point optical touch, etc.



 Product Diagram:

dd7c7d89703c5e3f22f18aa27b0e1cb1



 Size:



31554818b3ef49cc9b35a12cb3b5fd62
