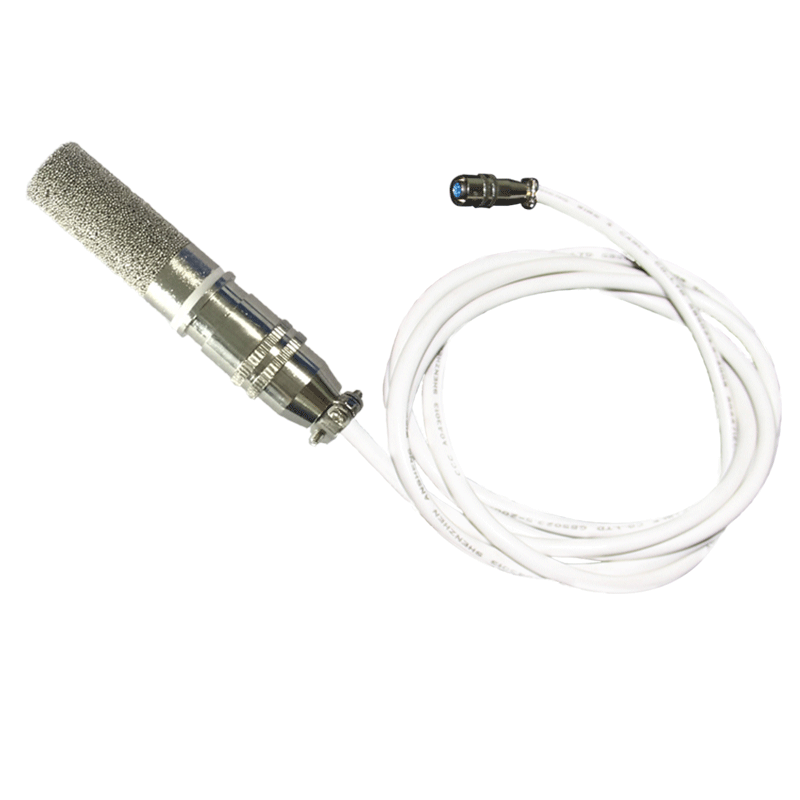

Colorlight SSR-TEMP Temperature and Humidity Sensor

Colorlight SSR-TEMP sensor is mainly used to monitor the temperature of the LED display and humidity conditions.

Description

Features

  • RS485 interface, communication distance up to 1200 meter;
  • Imported probe, high precision, wide range, good consistency;
  • Designed with standard guide rail structure, easy installation;
  • High stability and anti-interference ability;
  • Input voltage: DC5~12V;
  • MODBUS RTU standard communication protocol;
  • Strong barrier property, first-class lightning protection.

Specification

Rated voltage DC5V~DC12V
Measuring range Temperature: -40℃~120℃

Humidity: 0~100%rh

Measuring accuracy Temperature: ±0.3℃ Resolution: 0.1℃

Humidity: ±3%rh Resolution: 0.1rh

Output interface RS485
Communication protocol MODBUS RTU
Communication address 1-247
Baud rate 1200 bit/s, 2400 bit/s, 4800 bit/s, 9600 bit/s, 19200 bit/s
Average power consumption <0.1W
Wire length 5 meter (standard)
Installation Guide rail mounting, walls mounting indoors, ceilings mounting

Dimension

Product Size
Product Size
