colorlight S4 HD Sender

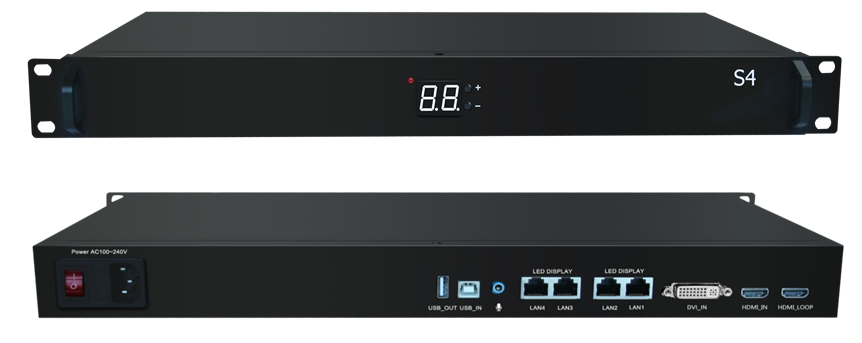

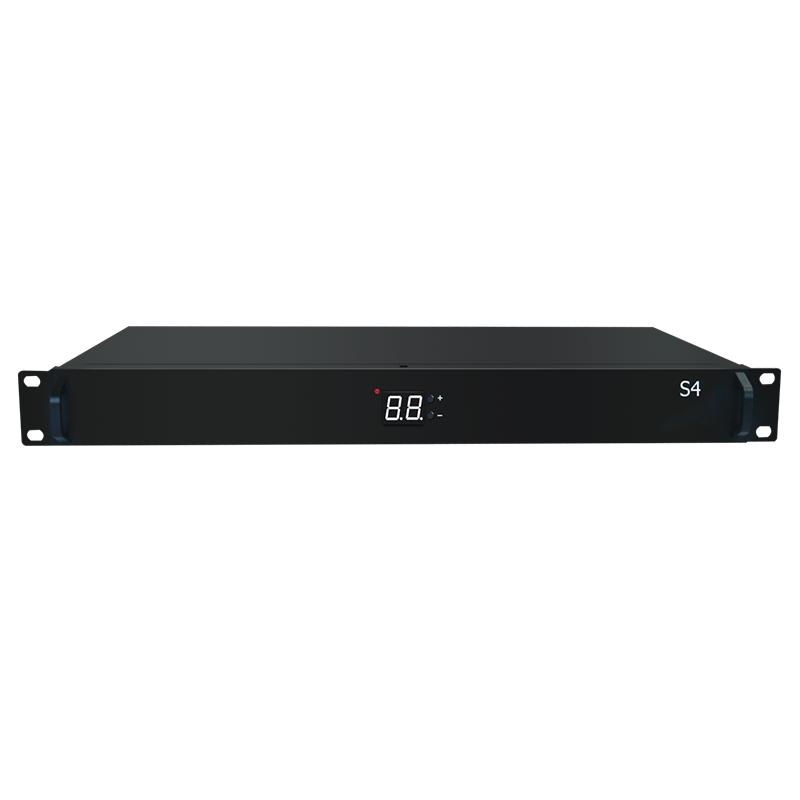

colorlight S4 HD Sender
Featu res
HDMI and DVI signal input ports with HDMI signal loop output port
Maximum input resolution: 1920*1200 pixels
Maximum loading capacity: 2.30 million pixels
Maximum Width: 4096pixels, Maximum Height: 2560 pixels
4 Gigabit Ethernet outputs support LED display screen arbitrary splicing
Dual USB2.0 for high speed configuration and easy cascading
Support brightness and chromaticity adjustment
Improved grayscale performance at low brightness
Support HDCP
Compatible with all series of Colorlight receiving card
Specifications
Video source interface
Interface Type
1*DVI+1*HDMI+1*HDMI_LOOP
Input Resolution
1920 *1200 pixels maximum
Video Source Frame Rate
60Hz, support auto-adjustment
Receive Area
Can be set freely
Output
Net Port Number
4 gigabit Ethernet ports
Control Area
2.3million pixels maximum
Maximum Width: 4096pixels, Maximum Height: 2560 pixels
Transmission Distance
CAT5≤140M;CAT6≤170M;Optical fiber: No limitation
Cascading
Up-down or left-right cascading defined by user
Transmission Mode
Frame mode (Gigabit Ethernet) with CRC
Connection equipment
Receiving Card
Compatible with all series of Colorlight receiving card
Peripherals
Multifunction card, optical fiber transceivers, gigabit switcher
Specification
Size
1U standard box
Input Voltage
AC 100~240V
Rated Power Consumption
20W
Weight
2kg
External interfaces
Configuration Port
USB 2.0*1
DVI Information
Present info about frame rate, blanking value, clock, display status of video card and video processor
Brightness Adjustment
Adjustment by knob, auto saved in sending card, what you see is what you get
Real Time Configuration
Gamma, control area, parameters setting, what you see is what you get
Brightness and Chromaticity Adjustment
Support
Smart Detection System
DVI interface detection, temperature detection
More functions
Cascading
Via USB ports. Support synchronous parameter setting and read back
Multiple Screen Control
Multiple screens with different sizes can be controlled simultaneously
Background Playing
Support background playing (Extended mode)
BER Detection
Ethernet cable quality and malfunction detection
colorlight S4 HD Sender details
Hardware

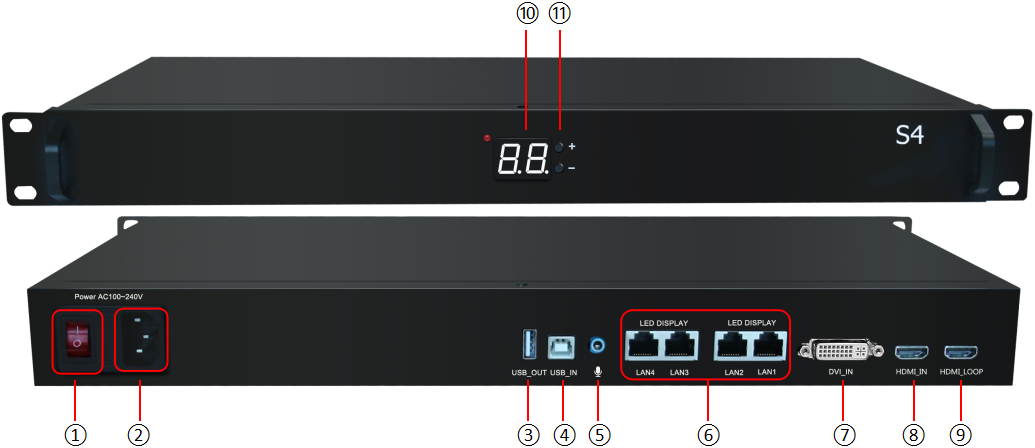

1. Interface Description
No
Name
Function
Remarks
1
Power switch
On/off
2
Power socket
AC power input
3
USB_OUT
USB output, sender cascading supported
4
USB_IN
USB input, connect with computer for configuration
5
Audio input
Input audio signal and transmit to the multifunction card
6
Output Port
RJ45, 4 outputs, connect to receiving cards
4 Gigabit Ethernet outputs support screen arbitrary splicing
7
DVI_IN
DVI signal input
8
HDMI_IN
HDMI signal input
9
HDMI_LOOP
HDMI loop output, for connecting or monitoring other senders
10
Indicator panel
To show brightness value
11
Brightness adjustment and test mode button
Adjust the brightness of the entire screen ( 16 levels );
Display the whole screen test mode conversion
Press “+”and “–“together to switch between brightness adjustment and testing mode.
colorlight S4 HD Sender details
2. Dimension
Unit: mm
