Description

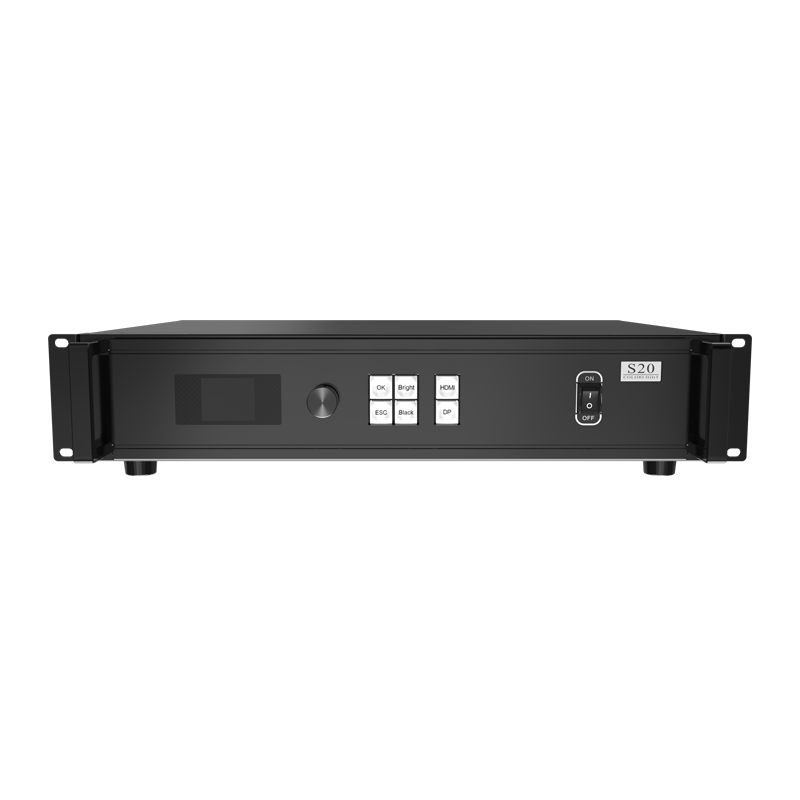

Colorlight S20 Sender is a sender possessing powerful video signal receiving capacity. It supports the input of DP1.4 and HDMI2.0, and seamless switching between signal sources. A single unit features a loading capacity of up to 8.85 million pixels, with a maximum width or height of 8192 pixels, while a single Ethernet port supports a loading width or height of up to 4096 pixels, and the sender supports signal inputs of up to 4096×2160@60Hz resolution. Thus, S20 allows users to configure ultra-long, ultra-high and ultra-large screens.
S20 supports 20 Gigabit Ethernet outputs, as well as Ethernet port redundancy and sender redundancy. It can not only effectively ensure the display stability of screens, but also provide high-quality image display and flexible screen control.
Features
- ·Inputs: 1× DP1.4,1×HDMI 2.0
- ·Supports seamless switching between signal sources
- ·Loading capacity: up to 8.85 million pixels,maximum width or height:8192 pixels
- ·Loading capacity of a single Ethernet port: up to 650 thousand pixels,maximum width or height: 4096 pixels. The loading capacity will reducewhen the height exceeds 1280 pixels.
- ·Input resolution: up to 4096×2160@60Hz,supporting customizedsetting of resolution within control range.
- ·Outputs: 20 Gigabit Ethernet ports, supporting Ethernet port redundancyor sender redundancy
- ·HDCP 2.3 compliant
- ·Supports USB cascading control and RS232 protocol control
- ·Separate audio input and output
- ·Supports 3D display
- ·Better gray at low brightness
- ·Compatible with all receiver cards and multifunction cards of Colorlight
Specifications
Input |
HDMI2.0 |
1×HDMI 2.0 |
DP1.4 |
1×DP 1.4 |
Output |
Port 1-20 |
RJ45,20 Gigabit Ethernet outputs |
3D(Optional) |
Output the 3D control signal |
Control |
USB IN |
USB input, connecting to PC for debugging |
USB OUT |
USB output, as cascading output |
RS232 |
RJ11 (6P6C)*, connect to the third party device |
Control |
USB IN |
USB input, connecting to PC for debugging |
USB OUT |
USB output, as cascading output |
RS232 |
RJ11 (6P6C)*, connect to the third party device |
