Description
colorlight H2F Fiber Optic Transceiver’s forward and back display

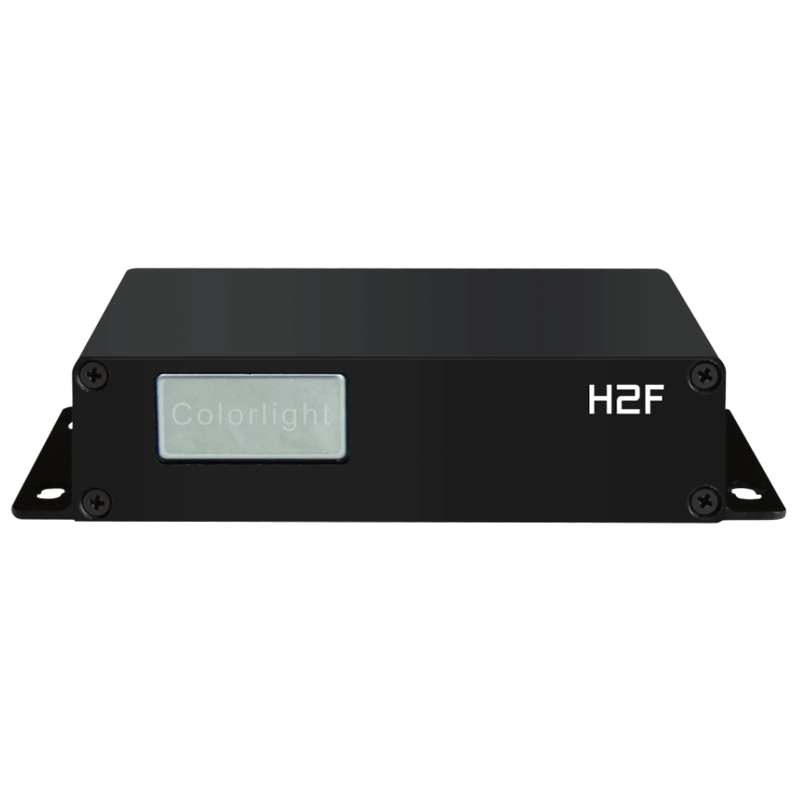

colorlight H2F Fiber Optic Transceiver

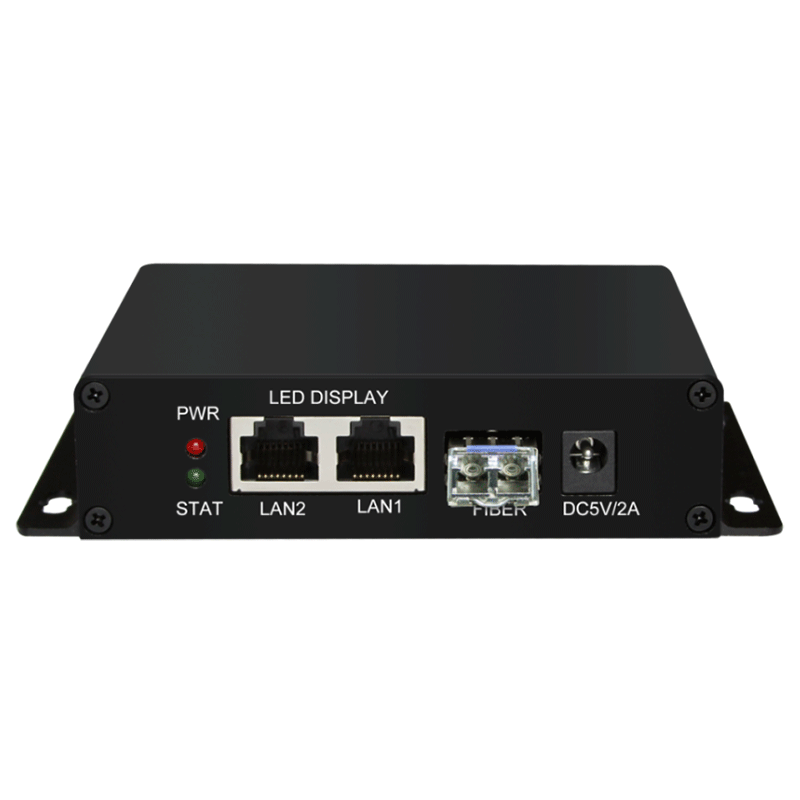

colorlight H2F Fiber Optic Transceiver back
Features
- Distributed feedback laser diode ( DFB LD )
- Up to 2.5Gb/s data links
- Multi-source package with duplex LC connector
- Hot-pluggable
- Eye safety designed to meet laser class 1
colorlight H2F Fiber Optic Transceiver Interface Description
| No |
Interface |
Description |
| ① |
Indicator Light |
Red light indicates power
Green light indicates working status |
| ② |
Ethernet Port |
Input or output gigabit Ethernet signal |
| ③ |
Fiber Module |
Input or output fiber optic signal |
| ④ |
Power |
DC power supply interface |
Parameters Description
| Storage Temperature |
-40 ~85 ℃ |
| Operating Temperature |
0 ~70 ℃ |
| Power |
DC 5V/2A |
| Data Rate |
2.5Gb/s |
| Working Mode |
Single-mode |
| Transmission Distance |
15Km |
| Fiber Interface Type |
Duplex LC |
| Laser |
DFB |
| Gigabit Ethernet Port |
LAN 1 & LAN 2, RJ45 |
| Fiber Interface |
1 port, 2.5G bandwidth |
Diagrams
Method 1: In conjunction with sending card.
colorlight H2F Fiber Optic Transceiver connection diagram
Method 2: In conjunction with S6F sender.
colorlight H2F Fiber Optic Transceiver connection diagram
Product Dimension
Unit：mm
colorlight H2F Fiber Optic Transceiver details
colorlight H2F Fiber Optic Transceiver details
