Colorlight C4 Player can connect to Internet through LAN/WiFi/4G. Based on Colorlight Cloud Server, C4 can rapidly achieve unified management of multiple screens
colorlight C4 Player can connect to Internet through LAN/WiFi/4G. Based on Colorlight Cloud Server, C4 can rapidly achieve unified management of multiple screens and multi-services across regions.
C4 possesses powerful functions including equipment monitoring, program edition, scheduling and cluster publishing, multi-level authorization management, programs are published after review.
C4 support multiple play windows and windows overlap, size and location can be freely set.
C4 can be set as AP Mode, supports program management and parameters setting via smartphone, tablet, PC, etc.
C4 supports GPS precise timing to achieve synchronization of multiple screens.
C4 comes with brightness sensor, it supports monitoring of working temperature and brightness, and automatic adjustment of screen brightness.
C4 has 8G build-in storage, 5G available for users; it supports USB storage, Plug&Play.
C4 has many advantages in applications of LED advertising screens and LED exhibition screens.
Maximum width: 4096 pixels, maximum height: 1536 pixels
Receiving Card Supported
All Colorlight receiving cards
Interfaces
Audio Output
1/8″ (3.5mm)TRS
USB Ports
USB2.0*2, support external storage (U disc, 128G in maximum) or communication equipment
Gigabit Ethernet
Output signal to receiving cards
100M LAN
Access network
WiFi
2.4G/5G dual-band; support AP mode and station mode
4G (Option)
Access internet
GPS (Option)
Precise positioning, precise timing, synchronization of multiple screens
Physical Parameters
Dimension
205.4*107.5*23mm
Working Voltage
DC 12V
Rated Power
10W
Weight
0.5kg
Working Temperature
-25℃~80℃
Environmental Humidity
0-95% without condensation
File Format
Program Split
Support flexible program windows split, support flexible windows overlapping, support multiple programs play
Video Formats
Common formats such as AVI, WMV, MPG, RM/RMVB, MOV, DAT, VOB, MP4, FLV and etc.; support multiple videos play at the same time
Audio Formats
MPEG-1 Layer III，AAC etc.
Image Formats
bmp, jpg, png, etc.
Text Formats
txt, rtf, word, ppt, excel etc.
Text Display
Single line text, static text, multiple line text, etc.
Screen Split
4 video windows, multiple picture/text windows, scrolling text, Logo, date/time/week. Flexible screen split can be achieved and different contents display in different area
OSD Supported
Support video/picture/text mixture or overlap with fully transparent, opaque, translucent effects
RTC
Support real time clock
Terminal Management & Control
Communication
LAN/WiFi/4G
Program Update
Update program through USB or network
Management Devices
Smart terminals like PC, Android, iOS and etc.
Automatic Brightness Adjustment
Timing automatic adjustment;
Environmental automatic adjustment
Timing Play
Play according to scheduled programs
Software
LEDVISION 5.0 or higher vision
Hardware

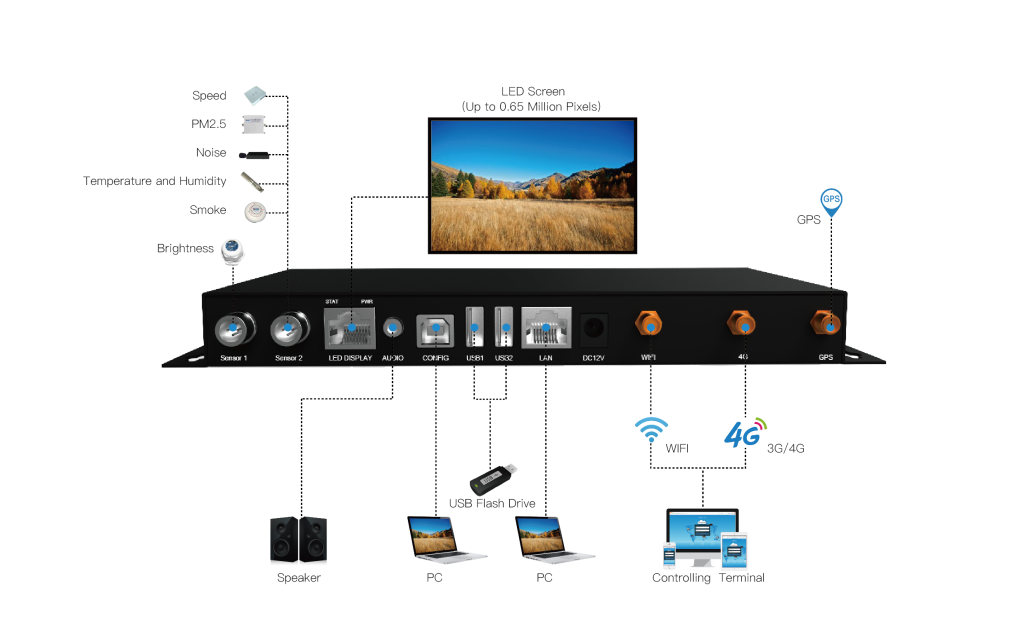

Colorlight C4 Player details
Interface Description:
No.
Name
Functions
1
Sensor Interface
Environmental temperature and brightness monitoring;
Automatic brightness adjustment
2
Ethernet Output
RJ45, signal output, connecting with receiving cards
3
Audio Output
HIFI stereo output
4
CONFIG Port
Screen parameters setting; Program publishing
5
USB Port
Program updating through U disc
6
LAN Port
Access network
7
Power Port
DC12V
8
WIFI interface
Connect with WIFI antenna
9
4G interface
Connect with 4G antenna (optional)
10
GPS interface
Connect with GPS antenna (optional)
11
Indicator Light
Green light flashes when signal detected;
Red light is bright when power is normal
Dimension:
Unit: mm
Colorlight C4 Player details
